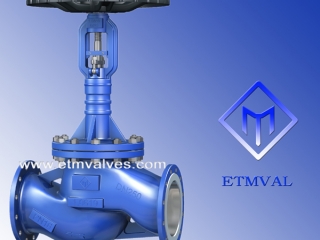

ETM Long Life Bellows Globe Valve

ETM Long Life Bellows Globe Valve
ETM FIG.L.961/962/963
DIN long life bellows seal globe valve
DIN long life bellows seal globe valve / Feature:
Three Layers bellows design with SS316L material.
Heat dissipating bonnet design
Bellows seal welded to stem
Bellows seal 8,000 load cycles
Yoke gasket,double chambered
Double balance disc design
Actuator retrofitting Secondary sealing: gland packing
DIN PN:PN16,PN25,PN40,PN63
DIN DN:DN15-DN400
Temperature Rating:-40°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body Basic shell material:Low temperature carbon steel, Carbon steel, High temperature carbon steel, Stainless steel, High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys.
Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements
Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator
Bellows Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Bellows Globe Valve / Mediums: Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
Standard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)
Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266
