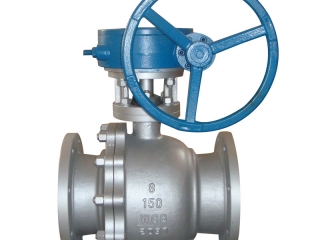

Side Entry Full Bore Ball Valve, Full Port , Wcb Body , 304 /PTFE Trim , Flange 150LB,DN200

Side Entry Full Bore Ball Valve, Full Port , Wcb Body , 304 /PTFE Trim , Flange 150LB,DN200
Valve Details:
Design standard: API 6D.
Body material: WCB.
Nominal diameter: 8 Inch.
Pressure: 150LB.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~10" (DN15~DN250).
End connection: ASME B16.5,EN 1092,JIS B2220
Pressure range: 150 lbs (PN16~JIS10K).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.
