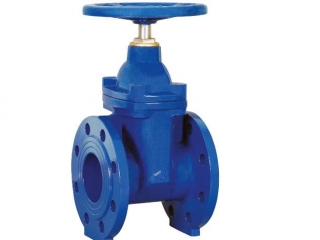

DIN Cast Iron F4 Resilient Gate Valve

DIN Cast Iron F4 Resilient Gate Valve
Specification Details

Design Std:EN 1171
Size:DN25--DN600
Pressure Rating: PN16,PN10
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: EN 558 Series 14(DIN 3202 F4)
Pressure Testing:DIN EN593/DIN EN12266-1
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120°C
Valve Description
Resilient-seated gate valves according to European standard EN 1171 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
