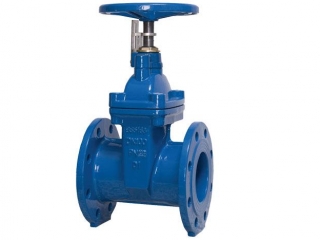

BS5163 Resilient Gate Valve

BS5163 Resilient Gate Valve
Specification Details

Design Std: EN 1074 part 1 & 2, BS5163 Type B
Size:DN40--DN1000
Pressure Rating: PN16,PN10
Seat: NBR,EPDM
Face to Face:EN 558 Table 2 Basic Series 3
Pressure Testing: EN 1074-1 and 2 / EN 12266
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120°C
Valve Description
Resilient-seated gate valves according to European standard BS5163 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
