Zhejiang Wanda Valve Co Limited

Šalis: Kinija

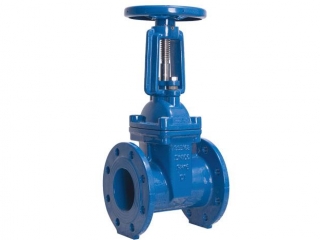

ANSI Resilient Gate Valve

ANSI Resilient Gate Valve
Specification Details

Design Std: AWWA C 515
Size:DN50--DN300
Pressure Rating:250 PSIG (17.2 Bar)
Seat: NBR,EPDM
Face to Face: ANSI B 16.10
Body Hydraulic : 500 PSI (34bar) to AWWA C 515
Seat Test : 400PSI (27 Bar) to AWWA C 515
Body/Bonnet: Cast iron ASTM A126 class B
Coating Electrostatically applied fusion-bonded epoxy-resin Meets or exceeds AWWA C550
Working temperature:-20 to +120°C
Valve Description
AWWA Resilient Wedge Gate Valve is designed for use in drinking water, sewage and fire protection systems as well as irrigation and backflow control systems.
