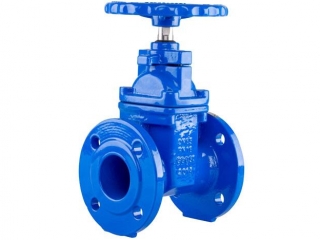

AS2638 Resilient Gate Valve

AS2638 Resilient Gate Valve
Specification Details

Design Std: AS2638.2
Size:DN50--DN600
Pressure Rating: PN16
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: AS2638.1 & ANSI B16.10
Pressure Testing:DIN EN593/DIN EN12266-1
Ductile iron body and bonnet for high strength and impact resistance - Ductile iron gate fully encapsulated in EPDM rubber to ensure tight seal
Flange Ends: AS4087 & AS2129 Table E/D
Working temperature:-10 to +80°C
Epoxy Coated To AS4158 300um minimum DFT
Valve Description
Resilient seated ductile iron gate valve is manually operated by a non rising stem handwheel operation made in accordance with AS2638.2, used in waste water and water treatment industries.
