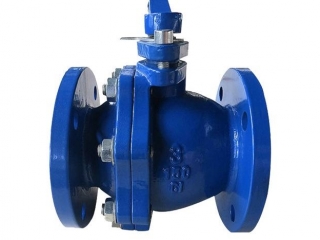

ANSI Cast Iron Ball Valve

ANSI Cast Iron Ball Valve
Specification Details

Design Std: ANSI B16.1,MSS SP-72
Two-piece body construction
Micro-finishing of disc and steam
Pressure Rating: 125PSI W.S.P
BODY: GG25, GGG40;
Ball: AISI304,
Seat: Seat: PTFE, RPTFE
Face to Face: ANSI B16.10
Flange Ends:ANSI B16.5
Pressure Testing:API 598
Top Mounting Flange: ISO 5211
Working temperature:-20 to +120°C
Valve Description
The ANSI ball valve is a full bore quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.
