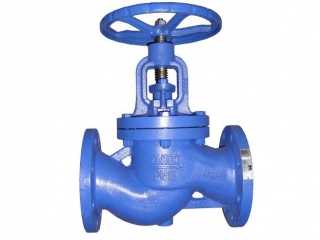

DIN Cast Iron Globe Valve

DIN Cast Iron Globe Valve
Specification Details

Design Std:EN 13789,DIN 3356
Size:DN15--DN300
Body, bonnet: Cast Iron (GG25)
Pressure Rating: PN10,PN16
COATING:EPOXY ELECTRO STATIC POWDER
Face to Face:EN 558 Seri 1 / DIN 3202 F1
FLANGED: 1092-2 / ISO 7005-2
Pressure Testing:DIN EN593/DIN EN12266-1
Working temperature: EPDM from -10°C to +105°C
Valve Description
DIN Cast Iron Globe Valve, maintains %100 tight sealing through the graphite gasket on the stainless steel disc moving perpendicular to the flow axis and seating on the machined metal seat inside the body. Its is used for steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties
