Zhejiang Wanda Valve Co Limited

Šalis: Kinija

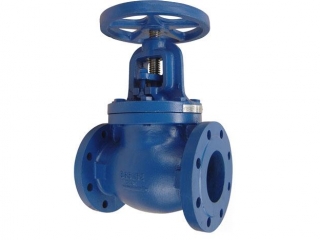

BS Cast Iron Globe Valve

BS Cast Iron Globe Valve
Specification Details

Design Std:BS 1873
Size:DN15--DN300
Body, bonnet: Cast Iron (GG25)
Pressure Rating: PN10,PN16
COATING:EPOXY ELECTRO STATIC POWDER
Face to Face:ANSI B16.10
FLANGED: ANSI B16.5
Shell wall thickness: BS 1873
Pressure Testing:Pressure Testing: API 598
Working temperature: EPDM from -10°C to +305°C
Valve Description
BS Cast Iron Globe Valve, maintains %100 tight sealing through the graphite gasket on the stainless steel disc moving perpendicular to the flow axis and seating on the machined metal seat inside the body. Its is used for steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties
