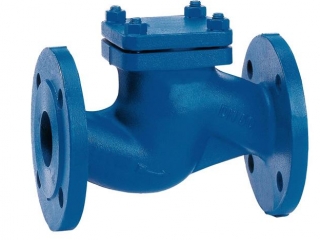

DIN Cast Iron Lift Check Valve

DIN Cast Iron Lift Check Valve
Specification Details

Design Std:EN 12334
Size:DN15--DN300
Body, bonnet: Cast Iron (GG25)
Pressure Rating: PN10,PN16
COATING:EPOXY ELECTRO STATIC POWDER
Face to Face:EN 558 Seri 1 / DIN 3202 F1
FLANGED: EN 1092-2 / ISO 7005-2
Pressure Testing:DIN EN593/DIN EN12266-1
Working temperature: -20°C to +200°C
Valve Description
Check valve is a backflow prevention device: it allows flow in only one direction. Lift check valves can be used for used in horizontal and vertical position due to the sealing is achieved by the spring.
