China Dervos Valves Co., Ltd
Country: China

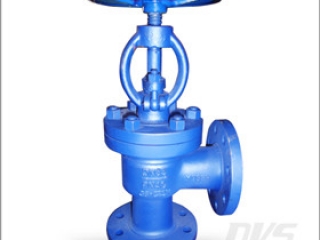

Angle Globe Valve, GS-C25, DN65, RF - dervos
 |
|
Valve description:
Design standard: DIN 3356.
Body material: GS-C25.
Nominal diameter: DN65 (2 1/2 Inch).
Pressure: PN40.
End connection: RF.
Face to face: DIN 3202-F32.
Working temperature: -29℃~+427℃.
Test and inspection: EN 12266-1/2.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
Features: The valve can make the medium flowing through the valve to change lowing direction, so generating a certain pressure loss. The valve entry has been designed as pipe-connection and flat bottom.
Send an inquiry
