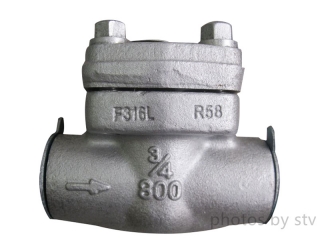

ASTM F316L Piston Check Valve, 800LB, DN25,SW End

ASTM F316L Piston Check Valve, 800LB, DN25,SW End
Product Detail
Design Standard: API602.
Body Material: F316L
Nominal Diameter: 1 Inch (DN25).
Pressure: Class 800.
End Connection: SW.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+460℃.
Mode of Operation: Handwheel.
Test and Inspection: API 598.
Product Range
Body Material: A105、LF2、F5、F11、F22、304、304L、316、316L、F51、F91、20#、Inconel .Ect
Normal diameter: 1/2"~3" (DN15~DN80).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196℃~ +560℃.
Product Keywords of ASTM F316L Piston Check Valve, 800LB, DN25,SW End
