STV Valve Technology Group Co.,Ltd
Country: China

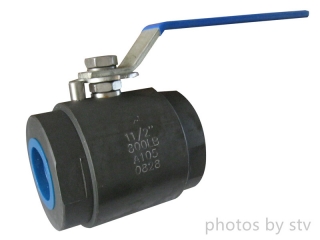

Forged Steel Floating Ball Valve, ASTM A105, NPT, 800LB,Peek Seat
 |
|
Design standard: ASME B16.34.
Body material: A105.
Nominal diameter: 11/2".
Pressure: CL800.
End connection: NPT.
Face to face: Manufactures Standard.
Working temperature: -29℃~+260℃.
Mode of operation: Lever.
Test and inspection: API 598.
Product Range
Rody material: A105,F304,F316,F11,F22, Alloy Steel.
Normal diameter: 1/2"~4" (DN50~DN1500).
End connection: NPT,BW, SW,Flanged.
Pressure range: 150 lbs~2500 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+425℃
Reliable sealing performance and small torque.
Full bore and reduced bore.
Low emission packing.
Fire safe, anti-static and anti-blowout stem design.
Optional locking device.
Optional ISO 5211 top flange.
Product Keywors of Forged Steel Floating Ball Valve, ASTM A105, NPT, 800LB,Peek Seat
