STV Valve Technology Group Co.,Ltd
Country: China

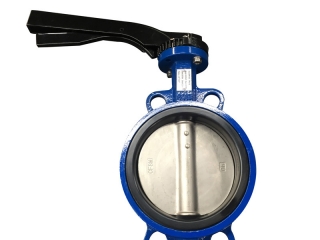

GGG25 Wafer Butterfly Valve, CF8 Disc, SS304 Shaft, EPDM Seat, DN200, PN16
 |
|
Body material: GGG25
Nominal diameter:8" (DN200).
Pressure: PN16
End connection: Wafer.
Face to face: API 609.
Working temperature: -15℃~+140℃ .
Mode of operation: Lever.
Test and inspection: API 598.
Product Range
Body Material: Cast iron, Ductile iron, Carbon steel, Stainless steel.
Normal diameter: 2"~12" (DN50~DN300).
End connection: Wafer, Lug, Flanged.
Pressure range: 150lbs~PN16~JIS10K
Operation: Manual, Worm gear, Pneumatic, Electric-Motorized.
Disc type:With-pin, One stem no-pin, Double stem no-pin
Working temperature: -46℃~+200℃.
Seat material:Rubber, Stainless steel, Aluminum, Iron
