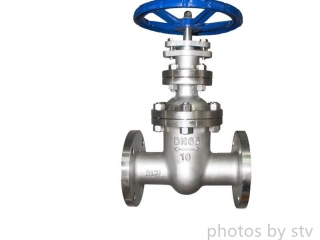

SS317L Gate Valve ,DN 65, PN 16 RF , DIN Standard

SS317L Gate Valve ,DN 65, PN 16 RF , DIN Standard
Product Detail
Design standard: DIN3356.
Body material: 317L.
Nominal diameter: 21/2" (DN65).
Pressure: PN16(150LB).
End connection: RF.
Face to face: DIN3202.
Working temperature: -29℃~+425℃.
Test and inspection: API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: PN16~PN420（150 LBs~2500 LBs。
Operation: Handwheel, Gearbox, Electric, Pneumatic.

Working temperature: -29℃~+560℃.

Product Keywords of SS317L Gate Valve ,DN 65, PN 16 RF , DIN Standard
