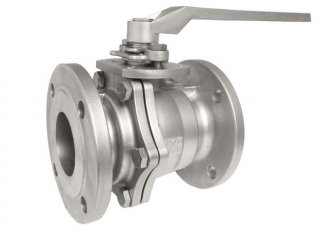

ANSI 2PC Stainless Steel Ball Valve

ANSI 2PC Stainless Steel Ball Valve
Specification Details

Design:API 6D, ASME B16.34
Size:DN15--DN600
Pressure Rating: 150LB,300LB
Material of Body: S.S 304, S.S 316, WCB, GS-C25
Ball: AISI316,
Seat: PTFE, RPTFE
End Flange:ASME B 16.5
Mounting Pad: ISO5211
Inspection Testing:API 598, API 6D
Face to Feace:ASME B16.10,API 6D
Fire Safe Test: API 607/API6FA
Temperature range: -10°C/+380°C
Valve Description
Anti-Static devices for 2PCS ball-stem-body; blow-out proof stem; ISO 5211 mounting pad for easy actuation; handle lever operated with locking device; full port(FB), RF flanged ends, ASME standard 150LB/ 300LB
