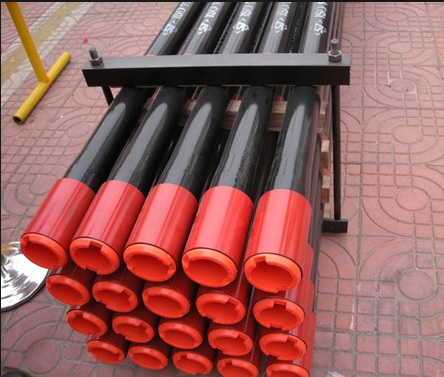

API Casing and Tubing

Dynoland can provide different kinds of casing and tubing, such as high collapse and high temperature casing and tubing, anticorrosion casing and tubing, thermal recovery casing and tubing and so on, which not only have good mechanical properties but also have high sealing property. All of them are designed in accordance with the API Spec 5CT&API Spec5B.


The casings and tubing in accordance with API Spec 5CT&API Spec5B from Dynoland are available with the following features:






Seamless and Welded



ISO 11960:2004, Petroleum and natural gas industries-Steel pipes for use as casing and tubing for wells



STC (short round thread casing)

LTC (long round thread casing)

BTC (buttress thread casing)

XL (extreme-line casing)

Premium Connections:

Vam series , Hunting series, Tenaris-Hydril series and JFE series analog.

And almost any premium & gas tight connection


Range 1, Range 2 & Range 3:



Issued in accordance with API Specification 5CT Eighth Edition

Additional Third Party Inspection can also be performed on request.


J55, K55, N80, N80Q, L80, C90, C95, T95, P110, Q125, SS95, SS110, 9%CR, 13%CR


Outside Diameter: 1.660″ – 30″


Out Diameter

weight

Grade

Thread

Length

in

mm

kg/m

lb/ft

4-1/2"

114.3

14.14-22.47

9.5-15.10

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

5"

127

17.11-35.86

11.5-24.10

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

5-1/2"

139.7

20.83-61.14

14-22.22

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

6 5/8"

168.28

29.76-47.62

20-32

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

7"

177.8

25.3-84.97

17.00-57.10

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

7-5/8"

193.68

35.72-82.3

24.00-55.30

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

8-5/8"

219.08

35.72-72.92

24.00-49.00

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

9-5/8"

244.48

48-112.50

32.30-75.62

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

10-3/4"

273.05

48-127

32.75-85.30

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

11-3/4"

298.45

62.50-105

42.00-71.00

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

13-3/4"

339.72

71.43-107.15

48.00-72.00

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

16"

406.40

96.73-162.21

65.00-109.0

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

18-5/8"

473.08

130.21

87.50

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

20"

508.00

139.89-197.9

94.00-133.00

J55/K55/N80/L80/P110

STC/LTC/BTC/XC

R1/R2/R3

 Remarks:

1 R1:  4.86M-7.62M   R2: 7.62M-1036M  R3:10.36M-12M

2  Standard: API 5CT

3 Material: H40/J55/K55/N80/C75/L80/C90/T95/P110/Q125





General casing tubing conforming to API standards for oil field and deep well drilling




·API H40 casing tubing – general purpose pipes conforming to API specification 5CT

·API J55 general purpose pipes for casing tubing applications, similar to specification K55 with lower minimum tensile strength conforming to API specification 5CT

·API K55 general purpose pipes used primarily in casings conforming to API specification 5CT

·API L80 casing tubing conforming to API specification 5CT with a controlled yield strength with hardness test requirement of 23 HRC maximum; usually used in wells with sour (H2S) environments or deep sour wells

·API N80 or N80 Q&T (Quench and Tempered) – general purpose pipe manufactured to API specification 5CT

·API Normalized N80 – lower-cost alternative to standard Q&T N80; pipe walls less than 0.500 inch; inspections, testing and dimensions are in accordance with API 5CT for grade N80. Charpy v-notch impact test absorbed energy results conform to API SR16 and are lower Q&T N80

·API C90 – an API controlled yield strength grade (25.4 HRC maximum) generally used in sour condensate wells; with required extensive hardness testing, SSCC testing per NACE Standard TM-0177-Method A; minimum threshold stress required is 80% of specified minimum yield strength

·API C95 – same strength range as T95 and U. S. Steel C95, but without a hardness requirement; generally not used in sour wells

·API T95 – API controlled yield strength grade (25.4 HRC maximum), the same as API C95 and U. S. Steel C95; generally for use in sour condensate wells; extensive hardness testing is required including SSCC testing per NACE Standard TM-0177-Method A; minimum threshold stress required is 80% of specified minimum yield strength

·API P110 – generally used in deep wells; this grade is not suitable for most sour condensate wells

·API Q125 – API grade for deep well service, generally not for use in sour condensate wells; quadrant hardness testing is required (no specified hardness limits other than the variation between readings); impact testing required for each heat and/or lot; typically EMI and UT NDT inspections are required
